B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

Name: B12514004S2063 Natural Rubber Air Spring1R14019 Air Suspension Spring Parts For OEM Piston Steel 11 10521 A 318
Brand: VKNTECH
Price: 1.00 USD

Quality B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318 wholesale

Place of Origin : Guangdong, China

Brand Name : VKNTECH

Certification : IATF16949/ISO9000

Packaging Details : CARTON/PALLET

Supply Ability : 2000000pcs/Year

MOQ : 20 Pieces

Price : $1.00 - $50.00/Pieces

Model Number : 1K9152

OE NO. : W01-358-9152

Car Model : For HENDRICKSON TRAILER

Warranty : 12 Months

Price condition : FOB China

Type : by sea / by air / by truck

Sample : Available

Material : Imported Natrul Rubber

Operation : Gas-filled

Brand : VKNTECH or customized

Service offered : OEM

Suspension system : Air Spring Suspension

Type of Goods : Air Spring/Air bags/Air Ballons

Package : Standard packing or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

OEM Numbers

Contitech	11 10.5-21 A 318	MFG.SV.# NEWAY	90044197
Goodyear	1R14-019	NEWAY	90557005
Firestone	W01-358-9152		90557069
	W01-358-9158	HENDRICKSON	B-12514-004
	1T19L-11/F-11		B-12514-011
		HENDRICKSON TRAILER	S2063
		RIDEWELL	1003589158C

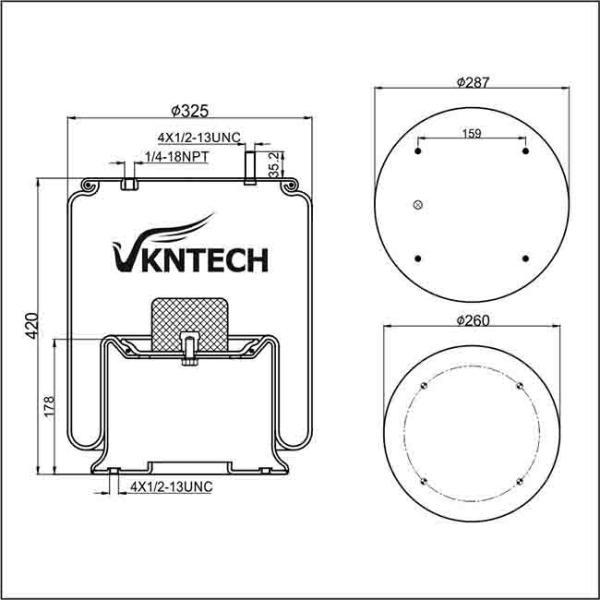

Product Drawing

B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

Specifications

Air Spring Compressed Height	8.7 in.
Air Spring Type	1T Reversible Sleeve
Diameter	10.62 in.
Maximum Height	27.3 in.
Piston Height	7 in.
Bead Plate Top Diameter	11.31 in.
Top Mount	stud
Bottom Stud Configuration	4
Bottom Mount	flat
Top Stud Configuration	5
Bead Plate Bottom Diameter	10.3 in.
Application	Hendrickson Trailer S2063, Holland (Neway) 90557069,MFG.SV.# Neway 90044197, Porcupine, Peerless
Assembled Product Weight (lb)	24
Bellows	1T19L-11
Design Height (in.)	14.5-18.5
Loading Capacity at 20 psig	1,760 lbsf
Loading Capacity at 60 psig	5,280 lbsf
Loading Capacity at 90 psig	7,920 lbsf
Maximum Diameter	13.7
Minimum Jounce Height (in.)	8.88
Natural Frequency	Hz
Operating Temperature (Deg C)	57 to -54

Featues and Benefits

· Require little to no maintenance
· Pressure tested for quality assurance
· Increase towing and hauling capabilities
· Replace worn out oem air bags
· Increase life of other suspension components
· NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation
· Direct replacement from OEM air springs – no additional components required
· Great for extending the life of your suspension as a whole – VKNTECH air springs are the most conveinent and reliable solution
· Spring Pro Bellows Number: TR9158
· Goodyear Bellows Number: 566-28-3-020
· Goodyear Part Number: 1R14-030
· Firestone Bellows Number: 1T19F-11 or 1T19L-11
· Firestone Part Number: W01-358-9158
· Replaces: Hendrickson Can. B-12514-004, Hendrickson Can. B-12514-011, Neway 90557005, Hendrickson Trailer S2063, Neway 90557069, Ridewell 1003589158C, Mfg SV# Neway 90044197
· Cross References: E1R14030, 1R14030, 9152, 8318, 8369, 352-9158, B-12514-004, B-2063, 36514-1, 36514-4, 554780C1, SC2045, AR-1215-1-F, 90557005, 90557069, S-2574C, AS622-9158, 64352, 11 10.5-21 A 318, 1110.5-21A318, 1110.521A318, W01-358-9158, W013589158
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
